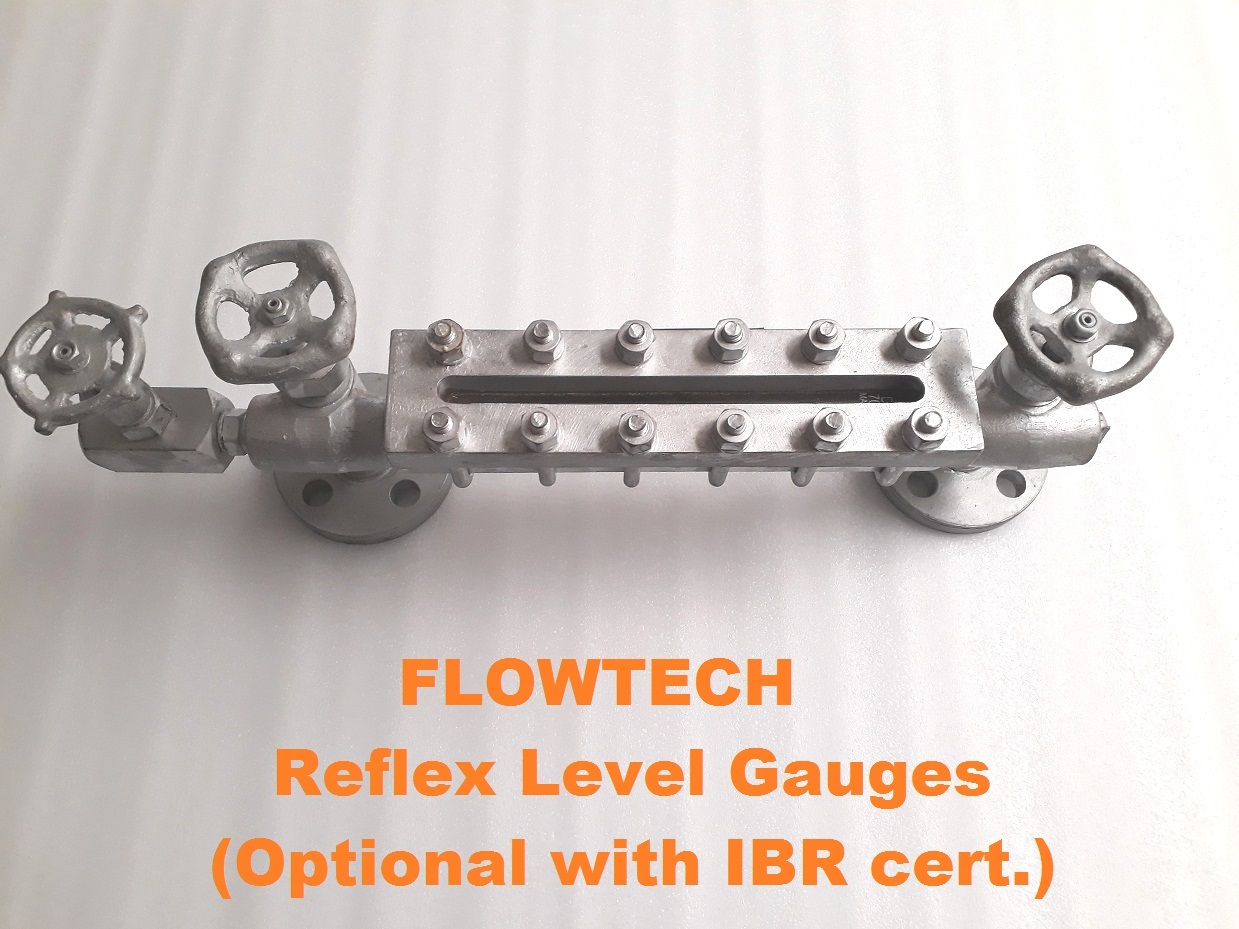

IBR REFLEX LEVEL GAUGE

Product Description

The product is designed for safe and positive visual indication of liquid level in vessels under high pressure & temperature conditions. These gauges have a prism glass window that uses the basic optical principles of light refraction & reflection to enhance the indication of the liquid level. It is a flat glass gauge, which has precision moulded prismatic grooves cut on its inner side, which comes in contact with the medium. Light striking the glass covered by liquid is refracted (absorbed) into the liquid making this portion appear black, whereas light covering the vapour space is reflected back towards the viewer, making it appear silvery-white. Thus, a sharp clear line marks the liquid level.

Reflex Level Gauge: The liquid chamber is formed by one-piece metal body, reflex gauge glass, sealing gasket, cushion and cover plate all held together by U-bolts and nuts.

Transparent Level Gauge: The construction is similar to Reflex except that the liquid chamber is formed by one-piece metal body and a pair of transparent gauge glass plate.

Gauge Classification : Standard ChamberGauge Glass : Klinger / Maxos Make Tempered borosilicate (Imported) in 30mm width as standard.Cushion : SS with GraphiteGasket : SS with GraphiteBody (Liquid Chamber) : CS A-105 (ASTM A-105) Cover Plate : CS (ASTM A-105)Bolts and Nuts : EN-8CC Distance : 300, 320,350, 385, 400, 450, 500,600,750,800,850 MMGauge Connection : Straight Through / Hook -Up Process Connection : Flanged to BS, ANSI or DIN Orientation of PC :Side Mounted at Top/Bottom Isolating valves : Integral Offset Needle ValveAir Vent : Plug (CS A-105)Drain : Globe/Needle valveMax. Test Pressure : 0-70 Kg/cm² Max. Temperature (°C) : 0-450°C)
