Liquid Level Indicators for Tanks

2500.00 - 15000.00 INR/Piece

Product Details:

  • Measuring Range 120 Celsius (oC)
  • Product Type Tubular Level Indicator / Gauge
  • Operating Temperature 120 Celsius (oC)
  • Working Temperature 100 Celsius (oC)
  • Pressure Type 10 kg/cm2
  • Application Water,Liquid
  • Supply Ability : 50 Piece Per Month
  • Click to view more
X

Price And Quantity

  • 1 Piece
  • 2500.00 - 15000.00 INR/Piece

Product Specifications

  • 120 Celsius (oC)
  • 120 Celsius (oC)
  • 100 Celsius (oC)
  • Water,Liquid
  • 10 kg/cm2
  • Tubular Level Indicator / Gauge

Trade Information

  • Vadodara
  • Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cash in Advance (CID), Cheque, Telegraphic Transfer (T/T)
  • 50 Piece Per Month
  • 1 Week
  • Wooden cage with Thermocol sheet packed
  • All India
  • ISO 9001, ISO 14001, OHSAS 18001

Product Description

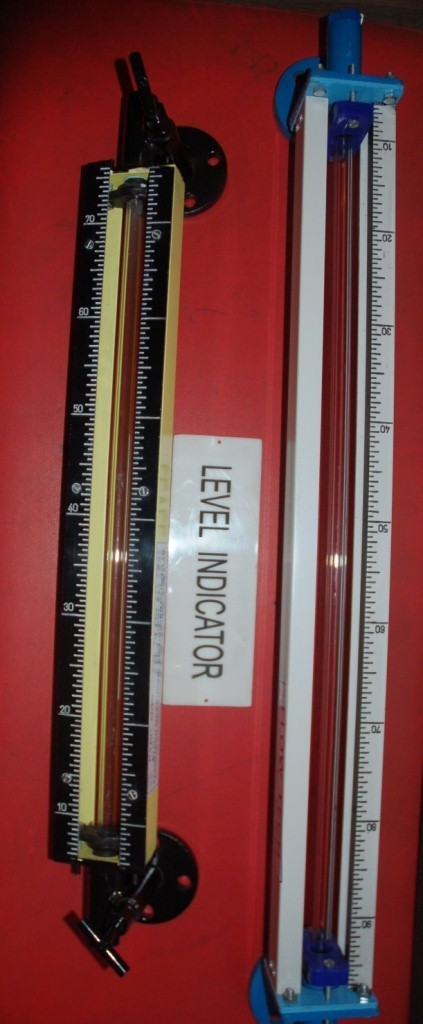

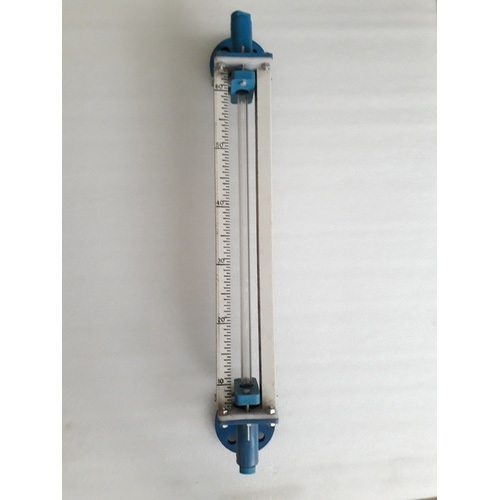

FLOWTECH Make Heavy Duty Tubular Liquid Level Indicator is a Simple & reliable device for direct Reading in atmospheric or pressurized tank application. These indicators eliminates trouble giving threaded joints of conventional gauge glass cock as hazardous damage surrounding equipments & Also endanger human life.



WORKING PRINCIPLE



The Gauge is fitted between two end blocks through gland packings The gauge is mounted parallel to tank so as to form a close loop causing tank liquid to seek its level in gauge. Guards are provided in the form of tie-rods / c - channels around the gauge to protect it from accidental blows. End blocks have built-in-isolating valve, drain valve and vent plug.



DESIGN FEATURE



  • The top & bottom liquid Chamber of indicator is made of solid bar & Glass Tube (Borosilicate) is fully Protected by Box Section made out of 2 mm thick M.S. channel. The strength of the box is so good that even if a man stands on the indicator, supported at both ends, the tube Remains intact.
  • We are using 100% PTFE  rope as packing to ensure positive leak tightness for full vacuum as well as 6 Kg / Cm service pressure.
  • As Compare to Reflex & Transparent type Level Gauge, this Tubular Level Indicator is light in weight.
  • It is available in single length of 3000 mm C/C Distance. We can extend the length by coupling 2 or more through coupler.
  • We are providing Air Vent Plug at top & drain plug at bottom for taking sample. We can also provide Inbuilt Isolation Valve on request.
  • It is simple and reliable device for direct reading in atmospheric or pressurized (below 5 Kg/cm2) tank application.
  • It Eliminates trouble giving threaded joints of Conventional Gauge Glass Cock as hazardous Chemicals Start leaking.
  • Glass Tube (Borosilicate Boiler Quality) is fully protected by guard Rods or Box Section made of 'C' Channel.
  • Offset Constructed Isolation Valve on request.
  • The connection provided will be Flanged / Screwed / TC Joint.



SPECIFICATION:



  • Connection: Flanged ASA 150#/screwed/T.C joint
  • End Fitting: CS/S.S.304/S.S 316/P.P
  • Protective Channel: C.S. Rectangle Channel box With Powder Coated/ S.S.304/S.S 316 /,P.P
  • Glass Tube: Heavy Walled Borosilicate H-19/16 / 25
  • Packing: ptfe
  • Valve: C.S./S.S.304/S.S. 316/P.P.
  • Press Rating: Up to 5 Kg/cm2: 300 to 3000 mm(more than 3000 mm please consult factory)
