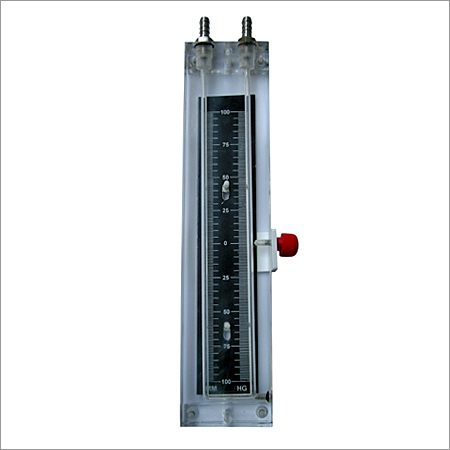

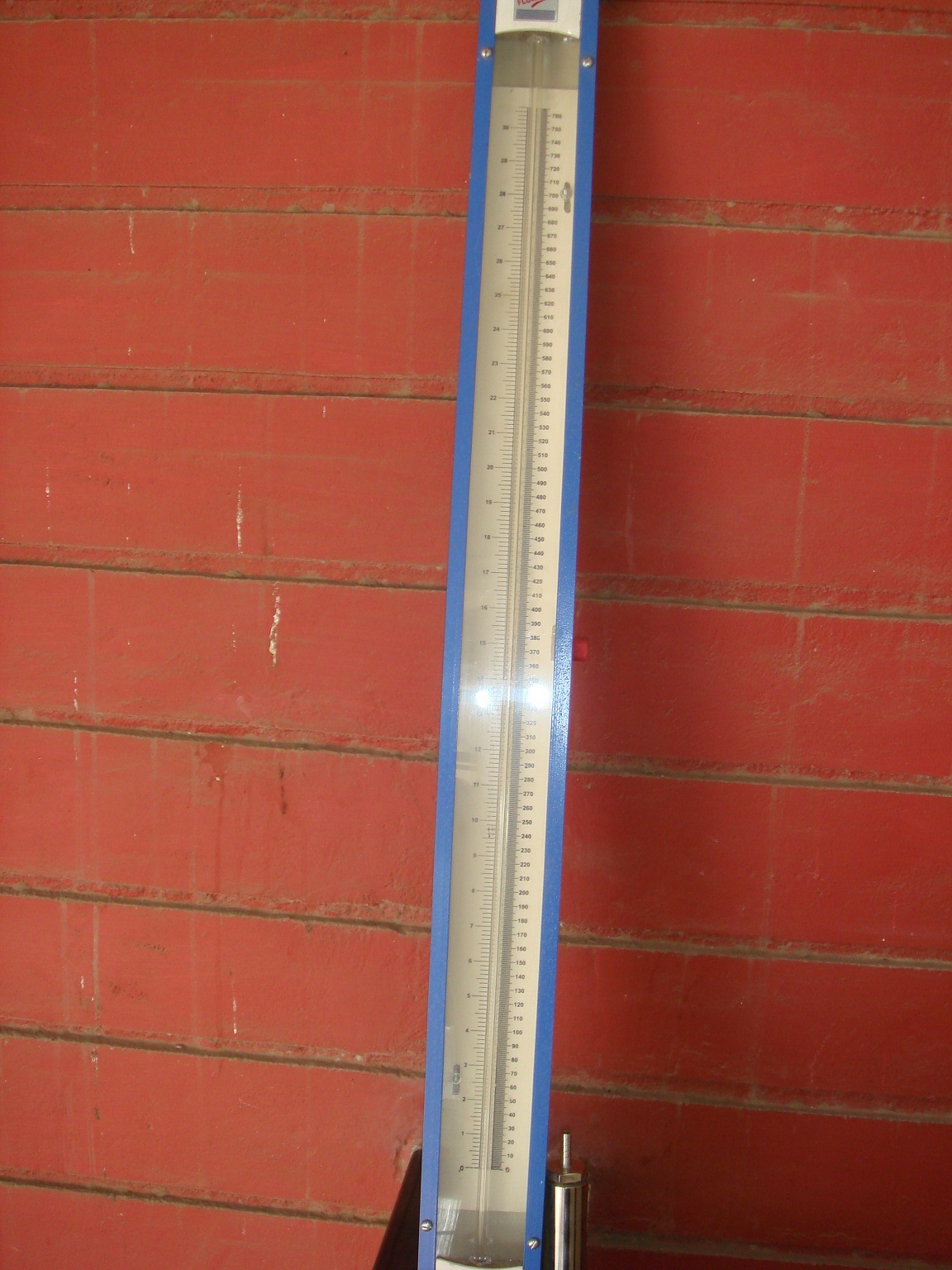

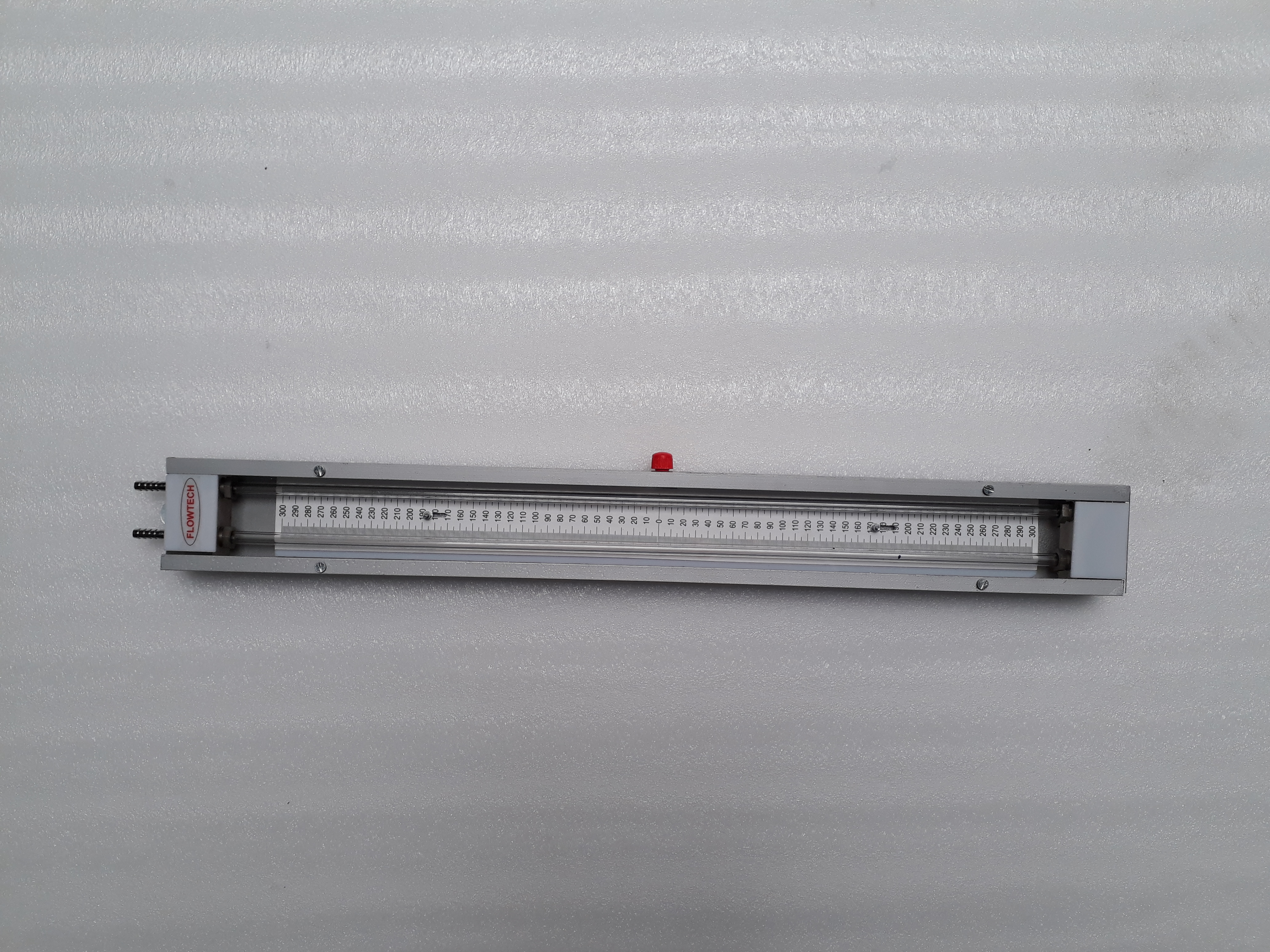

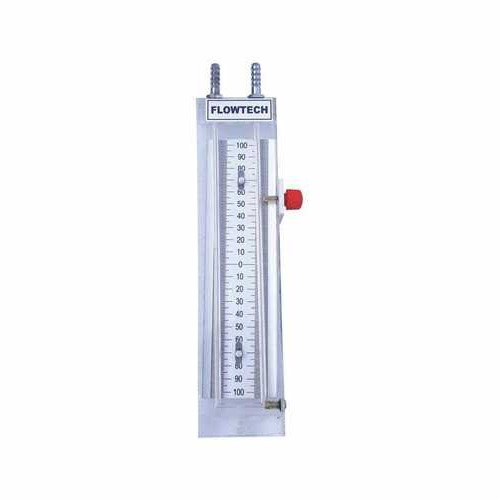

U Tube Manometer

About U Tube Manometer

U Tube Manometers are demaded by various Air pressure Pump manufacturers and various Gas companies including Oil companies for precision measurement of pressure, vacuum, differentials pressure flow and liquid level measurement. It gives direct reading in your required pressure range thus making pressure measurement easy and instanaeous. Initially liquid is filled in the well till the scale shows zero but when a positive pressure is being applied on the liquid in the well, causing the level to go down very slightly. Liquid level in the indicating tube has risen substantially giving direct reading from scale in desired units. The single limb well type manometer are accurate & dependable as well as highly versatile for many applications. All Scales are graduated to correct for the drop in the well level

U Tube Manometer Specifications:

• Type: Manometer
• Range : 0-200 Pascal
• Material Of Construction: Acrylic
• Least Count : 20 Pascal
• If Higher Accuracy Is Required Then Please use Inclined Tube Manometer
• Range : 0-200 Pascal
• Material Of Construction: Acrylic
• Least Count : 1Pascal
• Range Available : 25 - 0 - 25mm WC to 1500 - 0 - 1500mm WC

FAQ - U Tube Manometer:

How does a U Tube Manometer act?

The gadget works on the basis of hydrostatic pressure. When pressure is applied, one side of the fluid column in the U-shaped tube rises while the other side descends, showing the pressure differential.

Is it possible for a U Tube Manometer to measure both positive and negative pressures?

Yes, it can measure both positive and negative pressure, making it useful for a variety of pressure-related jobs.
