Tubular Level Indicator

Product Description

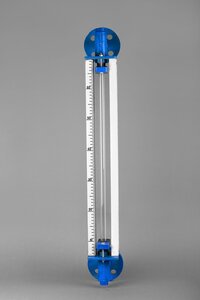

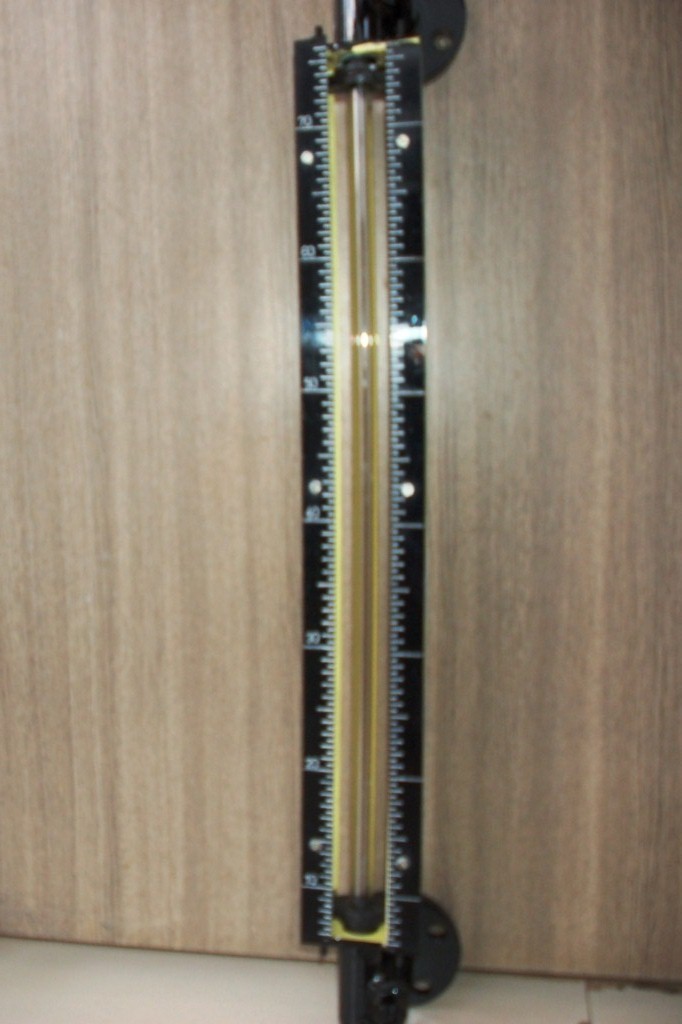

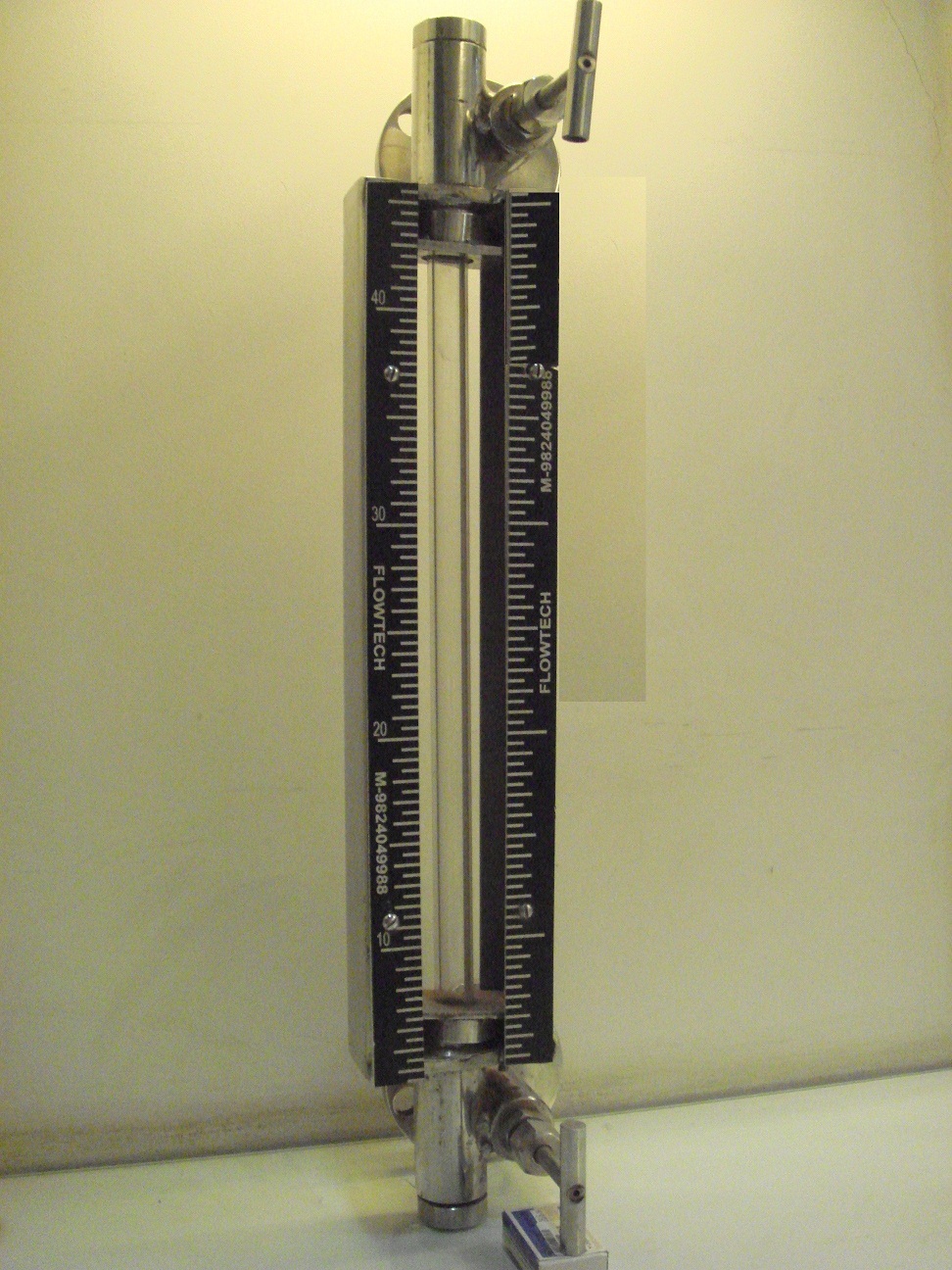

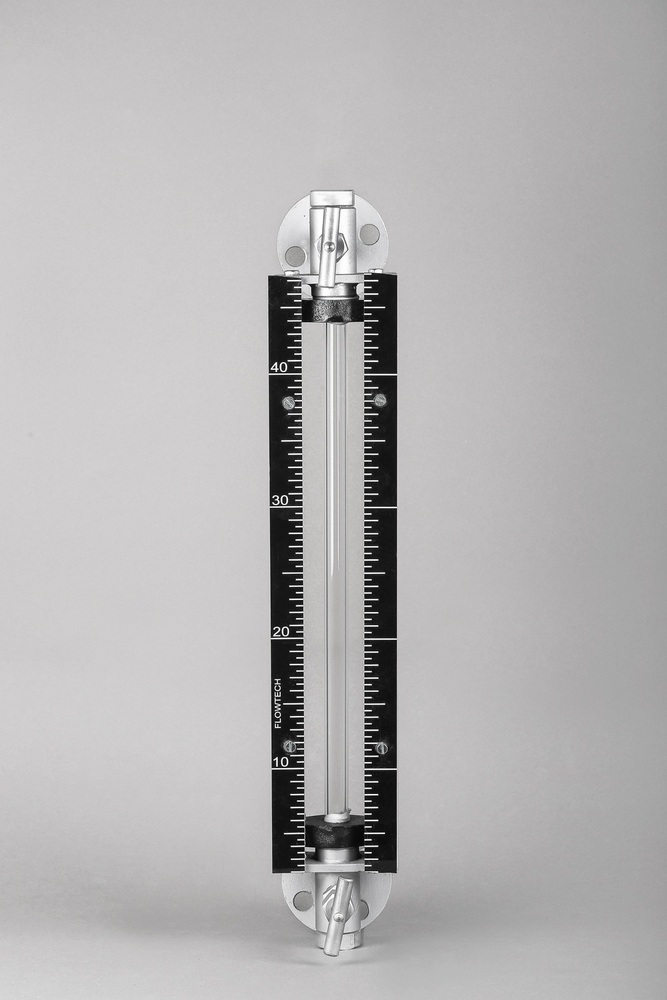

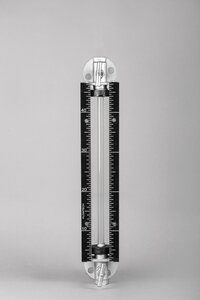

The FLOWTECH Heavy Duty Tubular Liquid Level Indicator is a dependable and simple instrument that may be used in both atmospheric and pressurized tank settings. This indication is better to traditional gauge glass cocks with threaded connections, which can endanger nearby equipment and human safety.

This level indicator removes the possible risks connected with threaded connections due to its sturdy construction and design. It provides a dependable and trouble-free method for correctly monitoring liquid levels without jeopardizing the system's integrity or threatening life.

Features-

• The indicator is made of premium grade materials to ensure amazing durability and undisturbed function.
• The indicator's top and bottom liquid chambers are solid bars, while the Centre component is a transparent glass tube. This design makes it simple to see the liquid level.
• The indication is built to withstand specific loads. It can easily resist a certain amount of weight or pressure while maintaining operation and precision.

FAQ-

Is the tubular liquid level indicator appropriate for use in both atmospheric and pressurized tanks?

Yes, the tubular liquid level indicator is intended for direct reading in both atmospheric and pressurized tank applications, particularly those with pressures less than 5 Kg/cm2.

What difficulty does the indication answer in the case of traditional gauge glass cocks?

The indication removes the problems associated with standard gauge glass cocks' threaded connections, which can be dangerous when chemicals begin to leak. This helps to maintain safety and prevents accidents.

How is the indicator's glass tube protected?

The indicator's glass tube, consisting of Borosilicate Boiler Quality glass, is completely covered by guard rods or a box section made of 'C'-Channel. This precaution serves to protect the glass tube from harm.

WORKING PRINCIPLE

The Gauge is fitted between two end blocks through gland packings The gauge is mounted parallel to tank so as to form a close loop causing tank liquid to seek its level in gauge. Guards are provided in the form of tie-rods / c - channels around the gauge to protect it from accidental blows. End blocks have built-in-isolating valve, drain valve and vent plug.

DESIGN FEATURE:

The top & bottom liquid Chamber of indicator is made of solid bar & Glass Tube (Borosilicate) is fully Protected by Box Section made out of 2 mm thick M.S. channel. The strength of the box is so good that even if a man stands on the indicator, supported at both ends, the tube

Remains intact.

• We are using 100% PTFE (TEFLON) rope as packing to ensure positive leak tightness for full vacuum as well as 6 Kg / Cm service pressure.
• As Compare to Reflex & Transparent type Level Gauge, this Tubular Level Indicator is light in weight.
• It is available in single length of 3000 mm C/C Distance. We can extend the length by coupling 2 or more through coupler.
• We are providing Air Vent Plug at top & drain plug at bottom for taking sample. We can also provide Inbuilt Isolation Valve on request.
• It is simple and reliable device for direct reading in atmospheric or pressurized (below 5 Kg/cm2) tank application.
• It Eliminates trouble giving threaded joints of Conventional Gauge Glass Cock as hazardous Chemicals Start leaking.
• Glass Tube (Borosilicate Boiler Quality) is fully protected by guard Rods or Box Section made of 'C' - Channel.
• Offset Constructed Isolation Valve on request.
• The connection provided will be Flanged / Screwed / TC Joint.

SPECIFICATION :

• Connection: Flanged ASA 150#/screwed/T.C joint
• End Fitting: CS/S.S.304/S.S 316/P.P
• Protective Channel : C.S. Rectangle Channel box With Powder Coated/ S.S.304/S.S 316 /,P.P
• Glass Tube: Heavy Walled Borosilicate H-19/16 / 25
• Packing: Teflon
• Valve : C.S./S.S.304/S.S. 316/P.P.
• Press Rating : Up to 5 Kg/cm²
• Temp. Rating : Up to 120 degree centigrade
• Range : 300 to 3000 mm(more than 3000 mm please consult factory)
