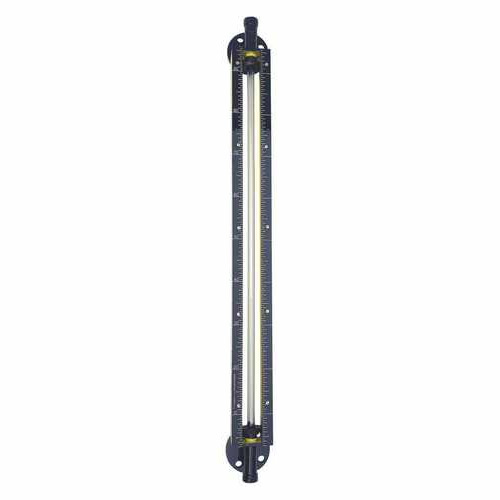

Level Indicator

4000.00 - 10000.00 INR/Piece

Get a Price/Quote

Product Details:

Measuring Range 120 Celsius (oC)
Product Type Tubular Level Indicator / Gauge
Operating Temperature 120 Celsius (oC)
Working Temperature 100 Celsius (oC)
Pressure Type 10 kg/cm2
Application Water,Liquid
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Level Indicator Price And Quantity

Minimum Order Quantity 50 Piece
Price Range 4000.00 - 10000.00 INR/Piece

Level Indicator Product Specifications

Application Water,Liquid
Operating Temperature 120 Celsius (oC)
Pressure Type 10 kg/cm2
Product Type Tubular Level Indicator / Gauge
Measuring Range 120 Celsius (oC)
Working Temperature 100 Celsius (oC)

Level Indicator Trade Information

FOB Port Vadodara
Supply Ability 50 Piece Per Month
Delivery Time 1 Week
Packaging Details Wooden cage and Thermocol sheet packed
Main Export Market(s) Western Europe Asia Australia Eastern Europe Middle East Central America South America North America Africa
Main Domestic Market All India
Certifications ISO 9001, 14001,OHSAS 18001

Product Description

DESCRIPTION

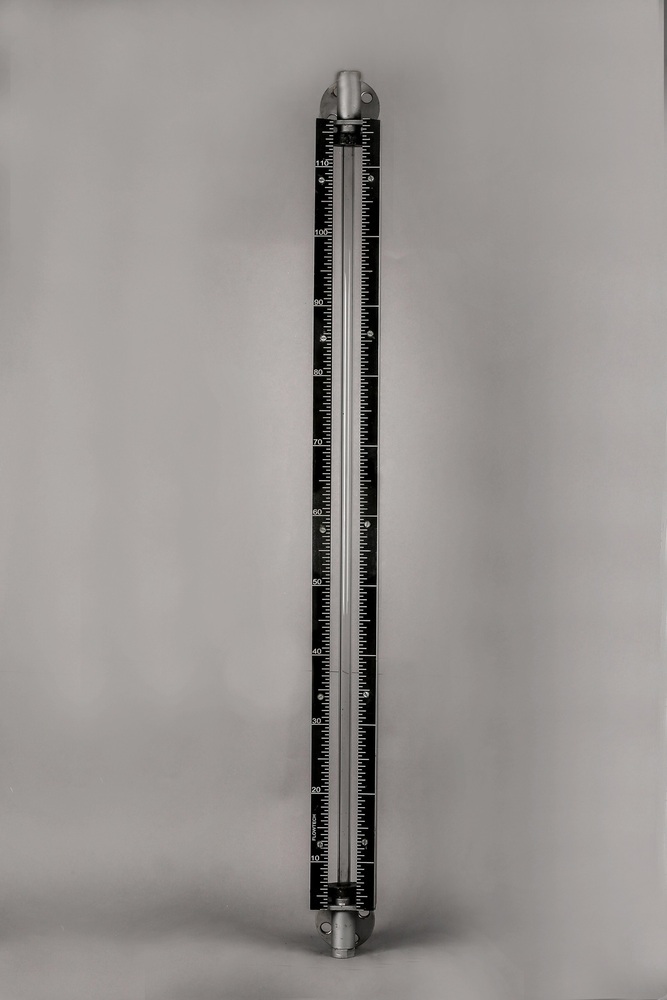

FLOWTECH Make Heavy Duty Tubular Liquid Level Indicator is a Simple & reliable device for direct Reading in atmospheric or pressurized tank application. These indicators eliminates trouble giving threaded joints of conventional gauge glass cock as hazardous damage surrounding equipments & Also endanger human life.

WORKING PRINCIPLE

The Gauge is fitted between two end blocks through gland packings The gauge is mounted parallel to tank so as to form a close loop causing tank liquid to seek its level in gauge. Guards are provided in the form of tie-rods / c - channels around the gauge to protect it from accidental blows. End blocks have built-in-isolating valve, drain valve and vent plug.

DESIGN FEATURE

The top & bottom liquid Chamber of indicator is made of solid bar & Glass Tube (Borosilicate) is fully Protected by Box Section made out of 2 mm thick M.S. channel. The strength of the box is so good that even if a man stands on the indicator, supported at both ends, the tube Remains intact.
We are using 100% PTFEÂ rope as packing to ensure positive leak tightness for full vacuum as well as 6 Kg / Cm service pressure.
As Compare to Reflex & Transparent type Level Gauge, this Tubular Level Indicator is light in weight.It is available in single length of 3000 mm C/C Distance. We can extend the length by coupling 2 or more through coupler.
We are providing Air Vent Plug at top & drain plug at bottom for taking sample. We can also provide Inbuilt Isolation Valve on request.
It is simple and reliable device for direct reading in atmospheric or pressurized (below 5 Kg/cm2) tank application.
It Eliminates trouble giving threaded joints of Conventional Gauge Glass Cock as hazardous Chemicals Start leaking.
Glass Tube (Borosilicate Boiler Quality) is fully protected by guard Rods or Box Section made of 'C' Channel.
Offset Constructed Isolation Valve on request.
The connection provided will be Flanged / Screwed / TC Joint.

The FLOWTECH Make Heavy Duty Level Indicator is a tough and trustworthy instrument that can be used in both atmospheric and pressurized tank settings. This level indicator provides a simple yet dependable method for detecting liquid levels correctly. The Level Indicator is intended to offer a clear and direct visual indicator of the tank's liquid level. It does away with the need for complicated or delicate components, resulting in a more robust and dependable solution. As a result, it is appropriate for a wide range of industrial applications requiring precise and real-time liquid level monitoring.

FAQ-

What is the Tubular Level Indicator / Gauge's measurement range?

The measurement range of the Tubular Level Indicator / Gauge is up to 120 °C.

What is the Tubular Level Indicator / Gauge's product type?

The Tubular Level Indicator / Gauge is a type of level indicator that is tubular in shape and used to measure liquid levels in tanks and containers.

What temperature range does the Tubular Level Indicator / Gauge operate at?

The Tubular Level Indicator / Gauge is intended to work in temperatures up to 120 °C.

What temperature range does the Tubular Level Indicator / Gauge function in?

The Tubular Level Indicator / Gauge can withstand temperatures as high as 100 °C. It can reliably detect and monitor liquid levels within this temperature range.

Enter Buying Requirement Details

+ Add Attachment

Email Id

Mobile number

Please Wait...

Other Products in 'Level Indicator' category

Liquid Level Indicator Price Range : 2500.00 - 8000.00 INR/Piece Minimum Order Quantity : 1 Application : Water,Liquid Working Temperature : 100 Celsius (oC) Pressure Type : 10 kg/cm2 Operating Temperature : 120 Celsius (oC) Product Type : Liquid Level Indicator / Gauge Connection : as per customer requirement

Send Inquiry

Bicolor Roller Type Level Indicator Price : 8100 INR/Piece Minimum Order Quantity : 1 Application : Water,Chemical Working Temperature : 150 Celsius (oC) Pressure Type : 15 Operating Temperature : 150 Celsius (oC) Display : BiColor Product Type : Level Indicator Warranty : 1 Year

Send Inquiry

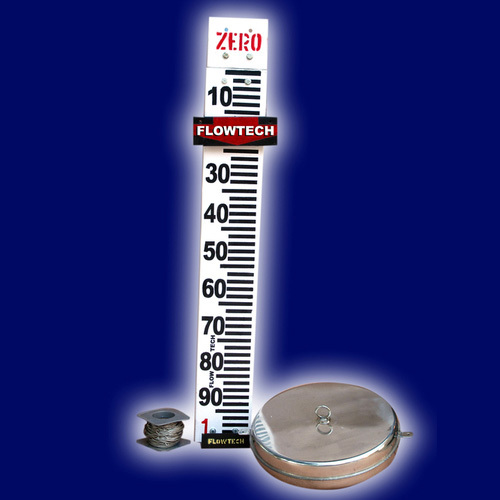

Fuel Tank level indicators Price Range : 5000.00 - 8000.00 INR/Piece Minimum Order Quantity : 50 Application : WATER, BOREWELL WATER, CEMICAL, ALCOHOL Working Temperature : 100 Celsius (oC) Display : VISUAL Warranty : 1 YEAR
