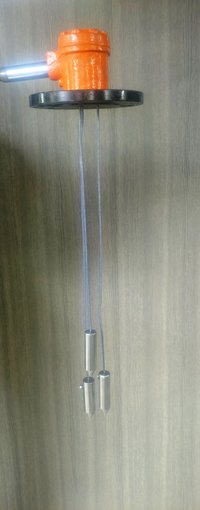

Conductivity Type Liquid Level Switch

4000 INR/Piece

Get a Price/Quote

Product Details:

Protection Level IP 65
Temperature Range 250 Celsius (oC)
Product Type Level Switch
Material C.S. or S.S.
Max. Voltage 230 V AC Volt (V)
Operating Temperature 250 Celsius (oC)
Size ANY SIZE
Supply Ability : 50 , , Piece Per Month
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Price And Quantity

Minimum Order Quantity 1 , , Piece
Price 4000 INR/Piece

Product Specifications

Size ANY SIZE
Temperature Range 250 Celsius (oC)
Product Type Level Switch
Protection Level IP 65
Max. Voltage 230 V AC Volt (V)
Material C.S. or S.S.
Operating Temperature 250 Celsius (oC)

Trade Information

FOB Port Vadodara
Supply Ability 50 , , Piece Per Month
Delivery Time 1 Week
Packaging Details Wooden cage and Thermocol sheet packed
Main Export Market(s) Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
Main Domestic Market All India
Certifications ISO 9001,14001, OHSAS 18001

Product Description

Conductivity Type Liquid Level Switch are intended for level detection of Tank Level Control and Pump & Process Protection in Electrically Conductive Liquids such as Water, Beverages, Lye Solutions, Acids, and Graphite etc. These are available in Top Mounting OR External Cage Top Mounting versions. These are Cost effective & having Reliable Performance, Easy installation, Ideal for simple applications, No moving parts hence long term reliability. Conductive Electrodes detects the level when the Electrodes are coming into contact with the Liquid. A low adjustable resistance, alternative current flows between the grounds (Earth) and the Electrode. This current is detected by signal conditioning instrument and processed into a switching signal. The switch point is determined by the length and mounting position of the appropriate electrode. In conductive Tank / Vessels, the Tank / Vessel wall forms the ground electrode and in case of a plastic OR FRP OR Rubber Lined (NON CONDUCTIVE) Tank / Vessel, the conductive electrode consists of one of the probes.

Process Connection : Minimum 1 ANSI 150 # RF (FLANGED) OR SCREWED OR as per requirement.
Input Power : 0.5 Amp @ 240 V AC OR 415 V AC OR 24 V DC
Switch Housing : Die Cast Aluminium, Weather Proof IP 65 (Enclosure)
Operating Pressure : Upto 30 Kg/Cm
Operating Temp : Maximum 1300 C.
No of Rods : Maximum 5 Rods.
Length of Rods : As per requirement.
Electrode Tip : SS316 / MONEL / Hastalloy C.
Electrode Sleeve : SS Sleeved with PP / PTFE.
Flanges : CS / SS304 / SS 316 / PP / PVC / HDPE / MS with PTFE OR Rubber Lined.
