Metal Variable Area Type Flow Meter are designed to measure flow rate of liquids and gases undercritical conditions. It consists of a tapered metal tube, an indicating assembly and float. A magnetencapsulated in float couples with rotating magnets are connected to an indicating pointer. Henceforth,the movement of the float is accurately indicated in terms of flowrate.
They are intended for application where high pressure, temperature or corrosive conditions preclude the use of conventional glass tube. These are all Metal Variable Area Type Flow meter design to measure flow rate of Liquids & Gases under critical conditions. It consists of a tapered metal tube, an indicating assembly and a float. A magnet encapsulates in float couples with rotating magnets connected to an indicating pointer, thus the movement of the float, is accurately indicated in terms of flow rate.

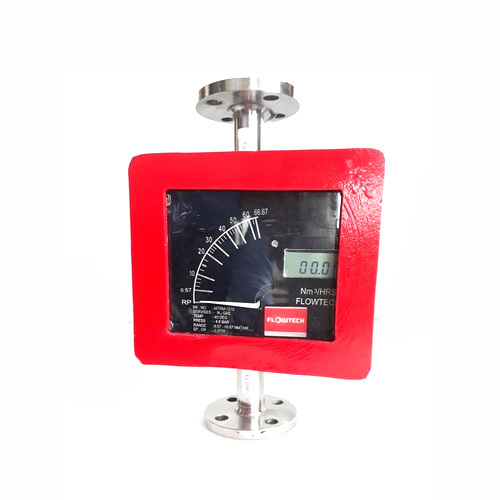

The Digital Metal Tube Rotameter is a cutting-edge flow meter used in industrial applications to measure the flow rate of liquids or gases. It combines the dependability of a metal tube design with cutting-edge digital technology to provide accurate and exact flow readings. The Digital Metal Tube Rotameter may be tailored to individual application requirements, such as varied flow ranges, temperature and pressure ratings, and compatibility with different liquids or gases. Chemical processing, oil and gas, medicines, water treatment, and HVAC systems are all frequent applications.
Design Features :
- Simplified piping and reduced space requirements
- Permanent magnetic link between metering float and motion position transmitter
- Precision swaged metering tube
- Guide cartridges easily removable for cleaning
- Provide with Electrical transmitter, flow indicator or alarm
- Available F/F Height in 250, 300, 350, 450, 500 mm
- Available Flange size 15 NB to 150 NB & Flow 200 LPH to 1,00,000 LPH
FAQ of Digital Metal Tube Rotameter:
What industries often employ Digital Metal Tube Rotameters?
Digital Metal Tube Rotameters are widely utilized in sectors such as chemical processing, oil and gas, pharmaceuticals, water treatment, and HVAC systems, where precise flow rate measurements are essential for process control and monitoring.
Can a Digital Metal Tube Rotameter accommodate varying flow rates and fluids?
Yes, Digital Metal Tube Rotameters may be configured to accommodate a broad range of flow rates and are suitable for use with a variety of liquids and gases. To ensure reliable measurements, they may be adjusted to individual application needs.
What is the operation of a Digital Metal Tube Rotameter?
A Digital Metal Tube Rotameter works by directing the flow of liquids or gases via a metal tube, commonly manufactured of stainless steel.
