By Pass Rotameters By Pass Rotameters By Pass Rotameters By Pass Rotameters
By Pass Rotameters
By Pass Rotameters By Pass Rotameters By Pass Rotameters

By Pass Rotameters

5000.00 - 25000.00 INR/Piece

Product Details:

X

Price And Quantity

  • 5000.00 - 25000.00 INR/Piece
  • 20 Piece

Trade Information

  • MUMBAI
  • 50 Piece Per Month
  • 1 Week
  • Yes
  • Within a certain price range free samples are available
  • Wooden Boxes
  • Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East, Africa
  • All India
  • ISO 9001, 14001, 18001

Product Description

FLOWTECH Measuring Instruments Private Limited manufactures By Pass Rotameter which is designed to measure the flow rate of any liquid or gas is available in various sizes up to 24" and 1000M3/Hr range. It is suitable for flow rate measurement in 2 or higher diameter pipes. It provides a linear measurement of fluids in conjunction. Flowtech has adopted the best ERP solution to ensure flawless manufacturing and supplies in India and abroad.

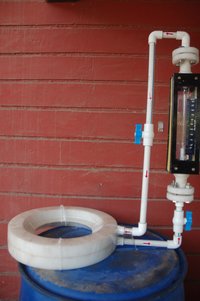

The complete assembly consists of a bypass line; carrier rings/flanged taps and a Rotameter as an indicator. It is the most economical, low cost and easy to maintain Rotameter engraved with all the standard features. We use the best material of construction of wetted parts for tolerating extreme conditions. Two tone powders coated excellent finishing with no leakage, corrosion free and heavy duty design.

By Pass Rotameter Features

  • It is very easy to maintain and robust construction
  • Online installation
  • Very cost effective
  • Accuracy 2 % of full flow
  • Range ability 7:1 / 5:1
  • High and low flow alarm solution
  • No threads, no leakage and avoids corrosions
  • Heavy duty design with maximum visibility

  • Accuracy : +/- 2% F.S.D.
  • Repeatability : 0.5 %
  • Rangeability : 5:1 for 50 WC D.P., 7:1 for 100 & 150 WC D.P., 10 : 1 for 200 & 40 0 WC D.P.
  • Scale length : 180-200 mm
  • Pressure Ratings : Maximum Operating Pressure is 25 Kg/Cm2.
  • Temperature Ratings : Maximum Operating Temperature rating is 121 o C for Gas services
  • And 93o C for Liquid services.
  • Connections : Flanged.
  • Enclosure : IP 55 OR IP 65 on request



Suitable for pipeline of 50 NB and above (upto 1000 NB)


  • The flow rate through the rotameter is proportional to the pressure drop across the orifice plate
  • Available in SS-316 / SS-304 / P.P. material
  • Available in Corner tapping (carrier ring), Flange Tapping or D and D/2 Tapping
  • Accuracy 2% FSD
  • High & low flow switches on request
  • Installed in both vertical & horizontal Pipe line
