FLOAT & BOARD TYPE LEVEL INDICATOR

FLOAT & BOARD TYPE LEVEL INDICATOR
Send Inquiry
Product Code : 123
Brand Name : Flowtech
Product Description

FEATURES:

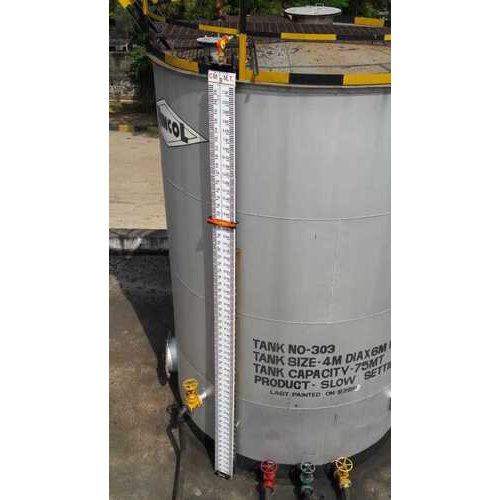

 large self centred float follows the liquid level in this gauge. A rope fitted with a float moves over a pair of dust free pulleys. Level is indicated by a pointer which moves on a 150 mm width aluminium powder coated scale.

Mainly used for storage tanks of Oil, Fire / DM water Alkalies, Acids furnace Oils, Lube Oil, Vegetable Oil, Molasses, Glucose etc.

Vapours seals (Magnetic) for special applications like HCl,N2 purged tank, diluted alkalies, dilute HNO3,NH3 Methanol,Banzene,Toluene, IPA etc.

In vapour seal there is no sealing liquids so we get absolute vapour tightness.

DESCRIPTION:

FLOWTECH offer Float & Board Type Tank Level gauge (indicator) suitable for large non  pressurized liquid storage tanks / vessels. This gauge is also applicable to cone roof, float roof, floating roof, under grand tanks etc. The Specific Gravity of the fluid should be more than 0.6(Free Flow) This level gauge wonks on the principle of buoyancy. The whole unit consist of two types of parts. Viz wetted parts & Non-wetted parts. Wetted parts are those which come in contact with the liquid e.g. Float anchor plan float guide wire etc while. Nonetted parts are the one which do not come in contact with the liquid e.g. Float wire, Mountain Breakets indicator pulley pulley hosing scale, indicator etc. The Float is available in different material S.S.304 / S.S.316/P.P./Teflon etc. In this level gauge, the float is design as per the specific gravity of the liquid, floating on the liquid levels. This float connected to a pointer through Rope via a Sets of Pulleys, The pointer slides over a CM marked Board, Installed Parallel to the tank. For more than 5 metre height of the tank we provide two guide wires firmly anchored to the tank bottom. So that horizontal movement of the float is restricted.

MATERIALS OF CONSTRUCTION:

  •  Float : S.S.316 / S.S.304 / Poly Propylene Float Wire & Float Guide Wire : S.S.316 / Poly Propylene Pulley & Pulley Pin : M.S. / S.S.304
  • Pulley Housing : Aluminium / S.S.304 / S.S.316 die Cast weather Proof Enclosure of Weather Proof
  •  Board (Scale) : Aluminium with Powder Coated having 150 mm Width & White Back Ground & Black writing at every 10CM and Red Marking at Every Meter.
  • Anchor Plate : M.S / S.S.304 / S.S.316
  • Scale Bracket (T) : M.S. / S.S.304
  • Pointer : M.S / S.S.304 with PP Roller for Friction less Sliding On Board.
  • Available : From 1 Metre to 20 Metre
