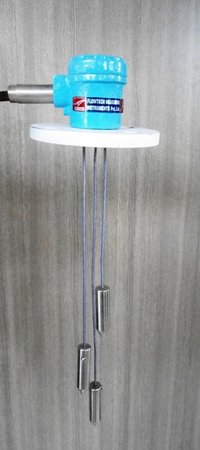

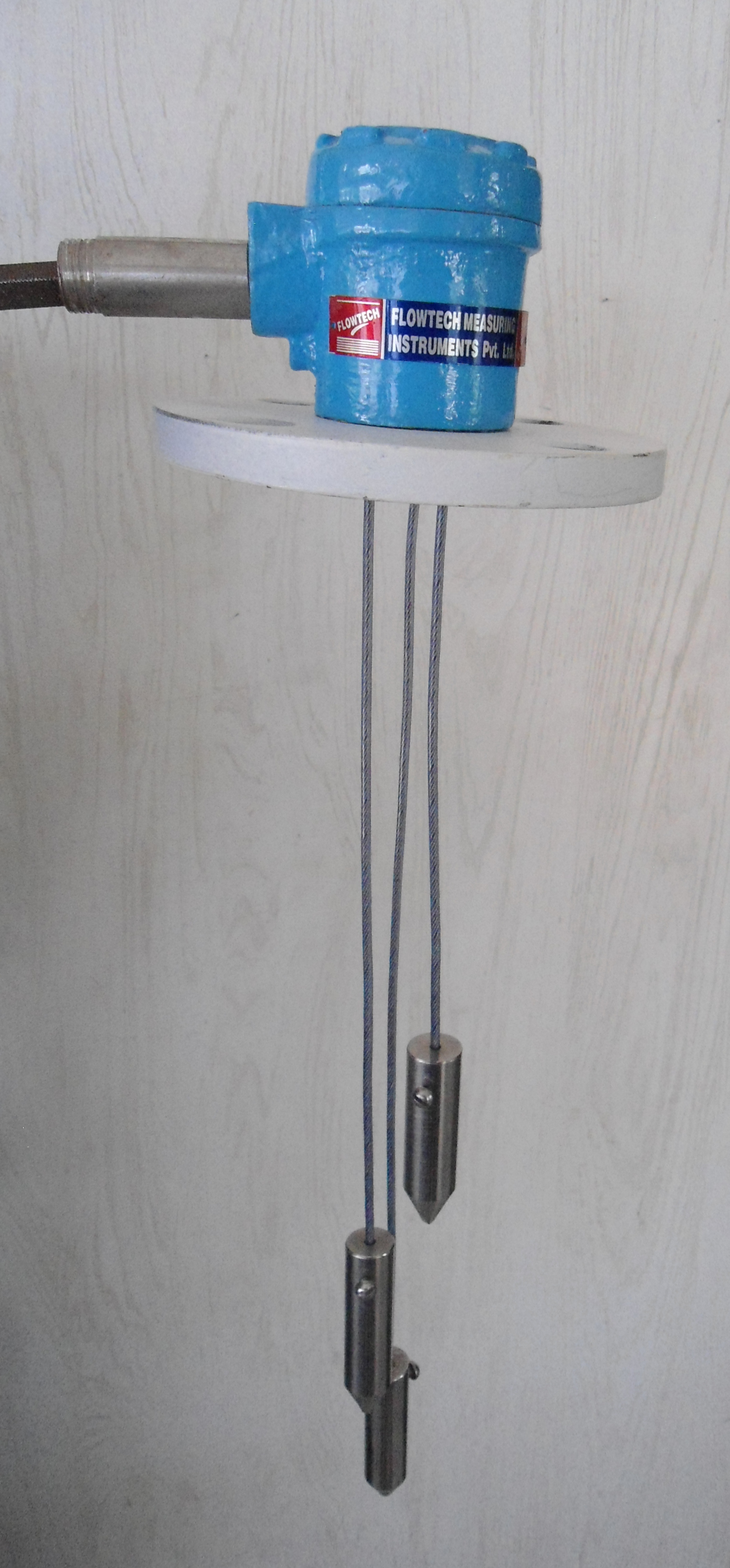

Conductivity Type Level Switch

5000.00 - 15000.00 INR/Piece

Get a Price/Quote

Product Details:

Response Time 100ms
Max. Current 5A
Rated Voltage 220V AC
Circuit Type SPST or DPDT (based on model)
Mechanical Life >1,000,000 operations
Number of Module 1
Temperature Range 0C to 60C
Click to view more
Share Your Product:

Request To Call Back Send Inquiry

Conductivity Type Level Switch Price And Quantity

Price Range 5000.00 - 15000.00 INR/Piece
Minimum Order Quantity 5 Piece

Conductivity Type Level Switch Product Specifications

Finish Type Polished / Matte
Number of Module 1
Automation Grade Automatic
Mounting Type Top/Side mount
Protection Level IP65
Material SS304 Electrode / Polypropylene Body
Color Silver/Grey
Current Rating 5A
Size Threaded 1 BSP (customizable length)
Contact Resistance 50m
Mechanical Life >1,000,000 operations
Weight Approx. 500g
Circuit Type SPST or DPDT (based on model)
No Of Poles Single Pole
Product Type Conductivity Type Level Switch
Max. Current 5A
Rated Voltage 220V AC
Operating Temperature 0C to 60C
Temperature Range 0C to 60C
Insulation Resistance 100M (500V DC)
Response Time 100ms
Max. Voltage 250V AC

Conductivity Type Level Switch Trade Information

FOB Port Mumbai, Nhava Seva
Payment Terms Cash Against Delivery (CAD), Cash on Delivery (COD), Cash in Advance (CID), Cheque, Cash Advance (CA)
Supply Ability 500 Piece Per Month
Delivery Time 2 Week
Sample Available Yes
Sample Policy Within a certain price range free samples are available
Packaging Details WOODEN BOXES
Main Domestic Market All India
Certifications ISO 9001, 14001, 18001

Product Description

FLOWTECH Conductivity Type Level Switches are intended for level detection of Tank Level Control and Pump & Process Protection in Electrically Conductive Liquids such as Water, Beverages, Lye Solutions, Acids, and Graphite etc. These are available in Top Mounting OR External Cage Top Mounting versions. These are Cost effective & having Reliable Performance, Easy installation, Ideal for simple applications, No moving parts hence long term reliability.Conductive Electrodes detects the level when the Electrodes are coming into contact with the Liquid. A low adjustable resistance, alternative current flows between the grounds (Earth) and the Electrode. This current is detected by signal conditioning instrument and processed into a switching signal. The switch point is determined by the length and mounting position of the appropriate electrode. In conductive Tank / Vessels, the Tank / Vessel wall forms the ground electrode and in case of a plastic OR FRP OR Rubber Lined (NON CONDUCTIVE) Tank / Vessel, the conductive electrode consists of one of the probes.

Process Connection : Minimum 1 ANSI 150 # RF (FLANGED) OR SCREWED OR as per requirement.
Input Power : 0.5 Amp @ 240 V AC OR 415 V AC OR 24 V DC
Switch Housing : Die Cast Aluminium, Weather Proof IP 65 (Enclosure)
Operating Pressure : Upto 30 Kg/Cm²
Operating Temp : Maximum 1300 C.
No of Rods : Maximum 5 Rods.
Length of Rods : As per requirement.
Electrode Tip : SS316 / MONEL / Hastalloy C.
Electrode Sleeve : SS Sleeved with PP / PTFE.
Flanges : CS / SS304 / SS 316 / PP / PVC / HDPE / MS with PTFE OR Rubber Lined.

FAQ:

How much pressure can the Conductivity Points Level Switches withstand?

The Conductivity Points Level Switches can withstand operating pressures of up to 30 Kg/Cm2, making them appropriate for high-pressure applications.

What is the highest temperature at which the Conductivity Points Level Switches can operate?

The Conductivity Points Level Switches can work at temperatures as high as 1300 degrees Celsius °C, making them suitable for use in high-temperature situations.

How many rods may be accommodated by the Conductivity Points Level Switches?

The Conductivity Points Level Switches can hold up to 5 rods, giving the associated user versatility in level control and monitoring for a variety of applications.

Versatile Application

Designed to monitor levels in water, chemicals, and other conductive liquids, this level switch finds use in diverse industries such as water treatment, chemical processing, and liquid storage management. The adjustable sensitivity accommodates a broad range of electrical conductivities, allowing for flexible application and reliable performance even in demanding environments.

High-Quality Construction

Manufactured with a stainless steel 316 electrode and a durable polypropylene body, the switch resists chemicals and corrosion. With an IP65 protection level and a mechanical life exceeding one million operations, users gain long-term durability even under harsh operating conditions.

Simplified Installation and Operation

With options for 1/2" or 3/4" BSP/NPT threaded connections and customizable lengths, installation is streamlined for various tanks and vessels. Features such as LED status indicators and automatic operation facilitate easy monitoring and integration with automation systems.

FAQs of Conductivity Type Level Switch:

Q: How is the Conductivity Type Level Switch typically installed?

A: The level switch can be mounted either from the top or the side of a tank using a 1/2" or 3/4" BSP/NPT threaded process connection. Its customizable length makes it suitable for different tank depths and applications.

Q: What types of liquids is this switch suitable for?

A: This switch is ideal for water, a variety of chemicals, and other conductive liquids. The adjustable sensitivity (5~50 k.cm) allows it to detect varying conductivity levels, making it adaptable to different industrial fluids.

Q: When should the sensitivity of the level switch be adjusted?

A: Sensitivity adjustment is needed when monitoring liquids with different electrical conductivities. Adjust the sensitivity within the 5~50 k.cm range to ensure accurate detection and switch operation according to your liquids properties.

Q: Where can this level switch be used effectively?

A: The switch is designed for use in environments requiring liquid level control, such as water treatment plants, chemical processing facilities, and industrial storage tanks. Thanks to IP65 protection and robust materials, it performs reliably indoors and in covered outdoor installations.

Q: What are the benefits of using this level switch?

A: Benefits include accurate level detection, compatibility with many conductive liquids, high durability due to SS316/Polypropylene construction, clear LED status indication, automatic operation, and safety with relay output supporting up to 250V AC, 5A.

Q: How does the relay output function in this switch?

A: The relay provides NO/NC (normally open/normally closed) contact output, rated for 250V AC, 5A with resistive load. It allows integration with pumps, alarms, or control panels, activating according to the preset liquid level.
