Level Indicator

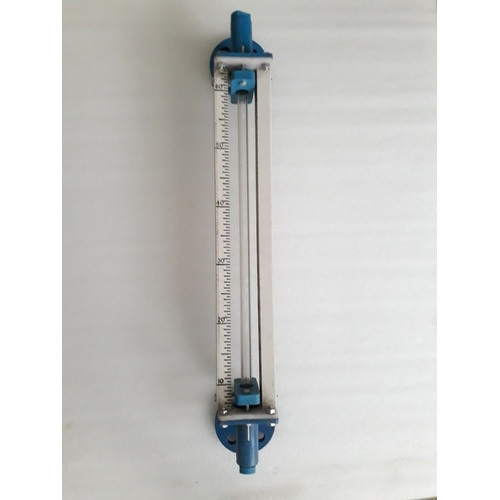

FLOWTECH Make Heavy Duty Tubular Liquid Level Indicator is a Simple & reliable device for direct Reading in atmospheric or pressurized tank application. These indicators eliminates trouble giving threaded joints of conventional gauge glass cock as hazardous damage surrounding equipments & Also endanger human life. WORKING PRINCIPLE The Gauge is fitted between two end blocks through gland packings The gauge is mounted parallel to tank so as to form a close loop causing tank liquid to seek its level in gauge. Guards are provided in the form of tie-rods / c - channels a

Apart from glass tube level gauges, transparent level indicators are always fitted with two plate transparent glasses between which the fluid is contained. The fluid level is indicated as the result of the different transparency of the two media and in some cases (for water& steam), by conveying upwards on to the surface of separation (between liquid and gaseous substances) a source of light located at the back of the gauge, the rays of which are totally reflected down to the observer.

Flowtech make Reflex Level Gauge is designed for liquid level indication in vessels under high pressure & temperature conditions. These Reflex Level Gauges are widely demanded in various pharmaceuticals and other industries due to their high performance and longer service ability in the domestic as well as international market.

Flowtech make Transparent Level Gauges employ two transparent glasses fitted with a liquid chamber on either side. The liquid level is indicated as a result of difference in the transparent properties of the two media. For water / steam applications, an illuminator is mounted on the rear side of the gauge with its light rays deflected upward into the water column. This enables the observer to see illuminated surface of the water as the light rays impinged on the surface of separation between water and steam are reflected back to the eye of the observer. WORKING PRINCIPLE A part from glass tube level gauges, transparent level gauges are always fitted with two plate transparent glasses between which the fluid is contained. The fluid level is indicated as the result of the different transparency of the two media and in some cases (for water steam), by conveying upwards on to the surface of separation (between liquid and gaseous substances) a source of light located at the back of the gauge, the rays of which are totally reflected down to the observer.

“FLOWTECH” offer Float & Board Type Tank Level gauge (indicator) suitable for large non – pressurized liquid storage tanks / vessels. This gauge is also applicable to cone roof, float roof, floating roof, under grand tanks etc. The Specific Gravity of the fluid should be more than 0.6(Free Flow) This level gauge wonks on the principle of buoyancy. The whole unit consist of two types of parts. Viz wetted parts & Non-wetted parts. Wetted parts are those which come in contact with the liquid e.g. Float anchor plan float guide wire etc while. Nonetted parts are the one which do not come in contact with the liquid e.g. Float wire, Mountain Breakets indicator pulley pulley hosing scale, indicator etc. The Float is available in different material S.S.304 / S.S.316/P.P./ptfe etc.

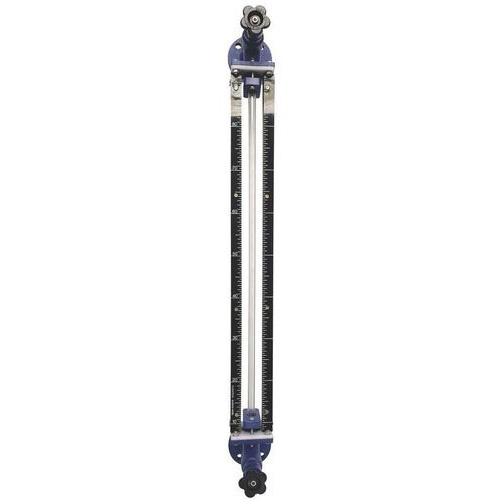

FLOWTECH Make Heavy Duty Tubular Liquid Level Indicator is a Simple & reliable device for direct Reading in atmospheric or pressurized tank application. These indicators eliminates trouble giving threaded joints of conventional gauge glass cock as hazardous damage surrounding equipments & Also endanger human life. WORKING PRINCIPLE The Gauge is fitted between two end blocks through gland packings The gauge is mounted parallel to tank so as to form a close loop causing tank liquid to seek its level in gauge. Guards are provided in the form of tie-rods / c - channels around the gauge to protect it from accidental blows. End blocks have built-in-isolating valve, drain valve and vent plug

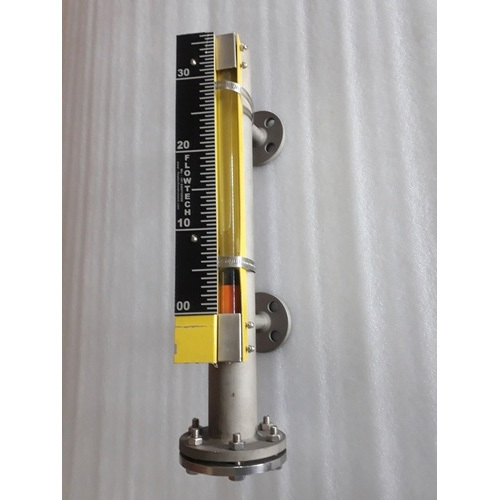

“FLOWTECH” make Magnetic Level Gauge provides clear, high clarity indication of liquid level. Magnetic Level Gauges are principally designed as an alternative to glass level gauges. Flowtech Instruments Services offers Magnetic Level Gauges in top-bottom, top and side mounted construction with two types of indicator system i.e. Capsule and Bi-colour Rollers. Magnetic Level Gauge is consists of three major components: Float Chamber, Float and Indicator System. Magnetic Level Gauge operates on the principle of magnetic field coupling to provide fluid level information. Float chamber is typically constructed with non magnetic pipe having process connections that matches to the vessel connections. Float size and weight is determined by the process fluid, pressure, temperature and the specific gravity of the process fluid. Float contains magnets to provide 360o magnetic flux field. “FLOWTECH” make top Mounted Level Indicator Substitute to the dip sticks method (for Horizontal & Vertical Tanks.) Corrosive acids like Sulphuric, Nitric, Chlorosulphuric, Acetic Acids, Solvents like Benzene, Acetone, Toluene, OR any Organic Liquids like Butadine, Vinyl chloride. NO maintenance and NO motive power require. Simple Non Magnetic can offer where bi-colour PVC capsules mounted on the float moves in glass tube externally.

DESCRIPTION OF REFLEX TYPE LEVEL GAUGE :- “FLOWTECH” Instrument offers Reflex Level Gauge for the Measurement of liquid level at a glance in tank. This is particularly using for High pressure OR High Temperature OR Toxic Liquid Storage Tanks. These gauges have a prism glass window that uses the basic optical principles of light refraction & reflection to enhance the indication of the liquid level. In brief when the light strikes the area of glass covered by the liquid is allow passing to the Interior of the gauge. So that the area appears dark (Black). While the light strikes the open space, above the liquid level is reflected back to the observer so that the area appears silver-white. We can clearly see the actual liquid level in the systems.

Flowtech make Reflex Level Gauge is designed for liquid level indication in vessels under high pressure & temperature conditions. These Reflex Level Gauges are widely demanded in various pharmaceuticals and other industries due to their high performance and longer service ability in the domestic as well as international market.
