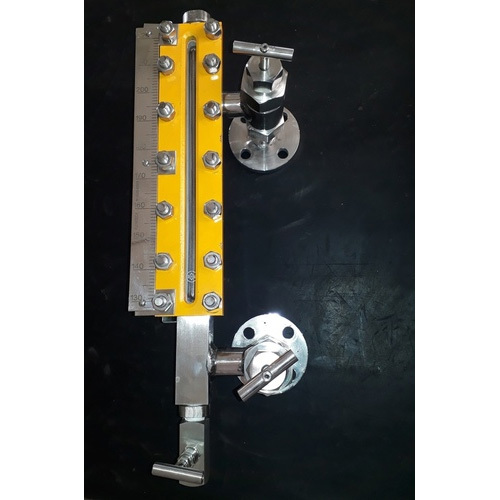

Transparent and Reflex Level Gauge

Name: Transparent and Reflex Level Gauge
Brand: FLOWTECH MEASURING INSTRUMENTS PVT. LTD.
Price: 12600 INR
Availability: InStock

Price 12600 INR/ Piece

Get a Price/Quote

MOQ : 1 Piece

Transparent and Reflex Level Gauge Specification

Usage
Industrial

Material
SS / MS

Working Presssure
300 Deg C

Grade
SS316

Color
Yellow Sliver

Transparent and Reflex Level Gauge Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
10 Pieces Per Day

Delivery Time
3 Days

Main Domestic Market
All India

About Transparent and Reflex Level Gauge

Transparent and Reflex Level Gauge for the Measurement of liquid level at a glance in tank. This is particularly using for High pressure OR High Temperature OR Toxic Liquid Storage Tanks. These gauges have a prism glass window that uses the basic optical principles of light refraction & reflection to enhance the indication of the liquid level. In brief when the light strikes the area of glass covered by the liquid is allow passing to the Interior of the gauge. So that the area appears dark (Black). While the light strikes the open space, above the liquid level is reflected back to the observer so that the area appears silver-white. We can clearly see the actual liquid level in the systems.

It is designed for safe and positive visual indication of liquid level in vessels under high pressure & temperature conditions. It is a flat glass gauge, which has precision moulded prismatic grooves cut on its inner side, which comes in contact with the medium. Light striking the glass covered by liquid is refracted (absorbed) into the liquid making this portion appear black, whereas light covering the vapour space is reflected back towards the viewer, making it appear silvery-white. Thus, a sharp clear line marks the liquid level.

Construction & Operation:

Reflex: The liquid chamber (1) is formed by one piece metal body (2), reflex gauge glass (3), sealing gasket (4), cushion and cover plate (6) all held together by u-bolts & nuts (7). The gauge glass sandwitched between the gasket & cushion is placed on front side for viewing of liquid level & held in the recesses machined in the body and cover plate. This ensures leak proof assembly, prevents gasket / cushion slippages and avoids glass to metal contact. The glass section comes in lengths from 11 5mm to 340mm and as many as 5 can be fitted in a single gauge assembly. Extended ranges can be provided by coupling two gauge assemblies through a coupler or the level gauges can be installed in a staggered manner. The level gauge is usually provided with shut - off valves at either ends to isolate the gauge in the event of glass breakage or replacement.
Transparent: The construction is similar to Reflex except that the liquid chamber (01) is formed by one piece metal body and a pair of transparent gauge glass plates.

Transparent and Reflex Level Gauge Specifications:

Gauge Classification Standard Chamber,Large Chamber or Weld Pad.Gauge Glass Tempered borosilicate (Imported)in 30mm width as standard.Cushion CAF Gasket CAF,PTFE
Body (Liquid Chamber) MS, CS (EN -8), ASTM A-105, SS304, SS316 or PPCover Plate MS, CS ( EN-8), ASTM A-105, SS304, SS316 or PP
Bolts! Nuts MS or Graded Alloy Steel for high temperature service
CC Distance 300, 320, 400, 450, 500,700,1000 MM
Gauge Connection Straight Through / Hook -Up
Process Connection (PC) Flanged to BS, ASA, ANSI, DIN J Screwed to BS or NPT
Orientation of PC Top \ Bottom Left, Right .Rear, Vertical isolating valves Integral Offset Needle Valve / Inline Ball / Globe Valve.Vent PlugDrain Needle / Valve
Calibrated Scale (Optional) AI / SS linearly calibrated for level values in mm(LC=10mm)Special Features Autoball Check
Max. Test Pressure 0-120 Kg/cm (Kg/cm sq)Max. Temperature ( Degree C) 0-400 Degree C.

FAQ about Transparent and Reflex Level Gauge:

Are these pressure and temperature gauges appropriate for high-pressure and high-temperature applications?

Yes, the Transparent and Reflex Level Gauges can resist a broad variety of pressures and temperatures.

Can these gauges be used with corrosive fluids?

To make these gauges compatible with corrosive liquids, specific materials and coatings might be utilized in their manufacture.

FAQs of Transparent and Reflex Level Gauge:

Q: What is the maximum working pressure of the Transparent and Reflex Level Gauge?

A: The gauge can withstand working pressure of up to 300 Deg C.

Q: What materials is the gauge made from?

A: The gauge is made from high-quality materials such as SS316 and MS.

Q: What is the color of the gauge?

A: The gauge comes in a vibrant yellow and silver color.

Q: What is the transparent tube used for?

A: The transparent tube allows for easy visibility of the liquid level.

Q: What is the reflex glass used for?

A: The reflex glass enhances the reading of the level, even in low light conditions.
