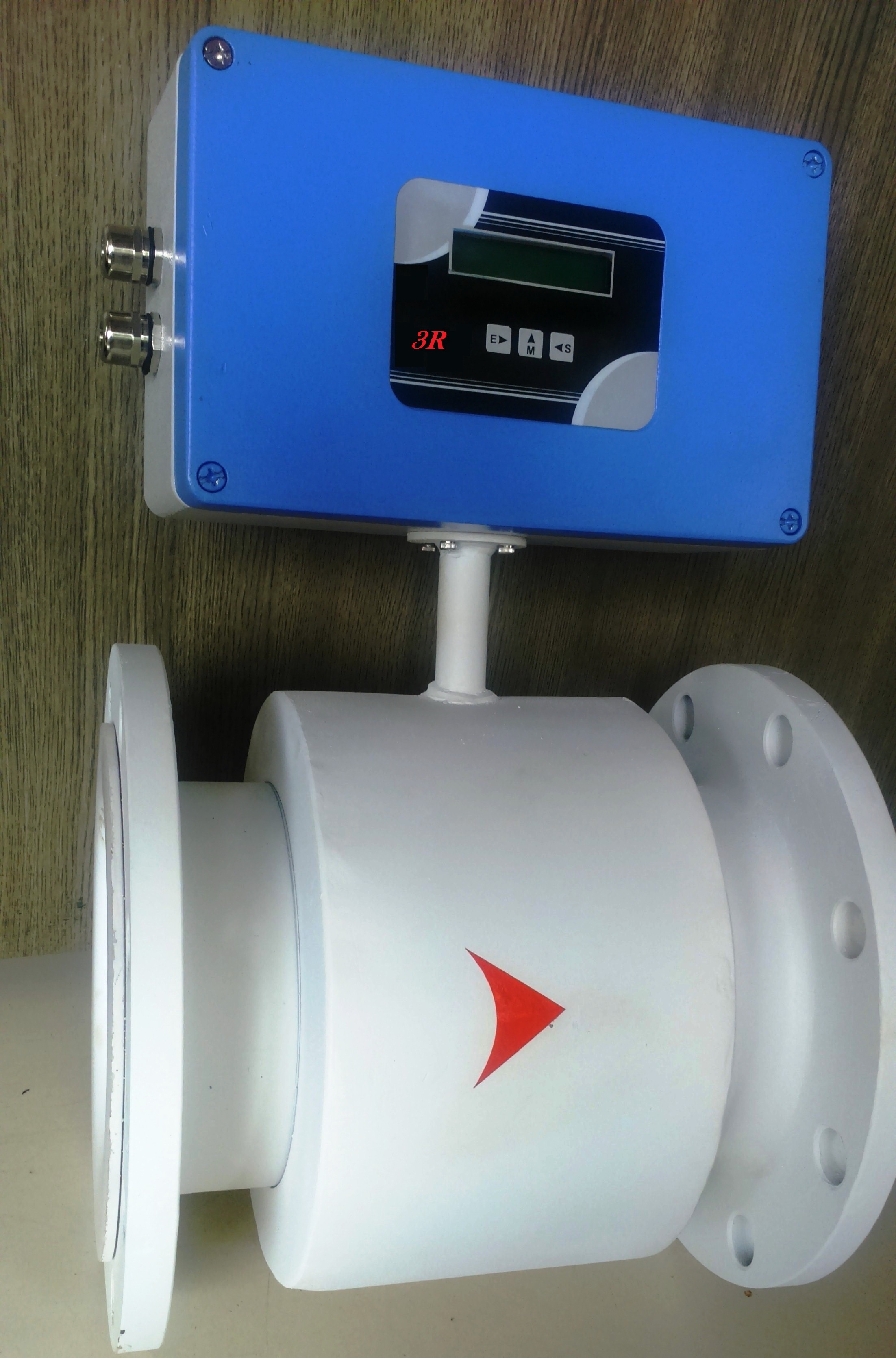

Digital PVC Electromagnetic Flow Meter

Digital PVC Electromagnetic Flow Meter

Product Details:


Product Description

Product Description

We are leading manufacturer of Low weight Low cost PVC Electromagnetic Flow Meter from India

Product Specification

Meter Size

DN 25 to DN 200

Flow Through Pipe



Hastelloy, SS 316, SS.316L,Tantalam

Flow Meter Body


Flange Material


End Connection


Input Supply

110 to 230 V Ac.50 Hz

Power Supply of field Coils

Plused Dc

Min Conductivity

5 cm

FLOWTECH Make PVC Electromagnetic Flow Meter are intended for measuring flow of electrically conductive liquids in closed pipe lines where the magnetic flux permeates the entire cross sectional area of the liquids flow. Electromagnetic flow meters measure electromotive forces to determine liquids velocity using Faraday's law of electromagnetic induction and compute the flow rate using equation of conductive liquids having minimum conductivity of 5 micro Siemens / cm and are relatively immune to the effects of temperature , pressure , viscosity density of the flowing liquid.

Working Principle:

This is working on the principal of faraday`s law which states that when a conductor moves through a magnetic field of a given strength a voltage is produced in the conductor and proportion to the relative velocity between the conductor and the magnetic field.

  • Scientific laboratory
  • Research centres
  • Chemical industries
  • Nominal Dia (mm) : 15 to 400
  • Material of Construction : MS, SS 304, SS 316 SS 316L
  • Electrode Material : SS 316, SS 316L, Hastelloy c, Tantalum
  • Process Pressure : Max. 25 kg/cm2
  • Process Temperature : Max. 150C
  • Flow Tube Material : SS 316
  • End Connection : Flange/Wafer
  • Flange- Standard : ANSI B 16.5 150 #RF / 300 # RF
  • Measuring Range : 0.5 m/sec for Minimum 5m/sec for Maximum
  • Accuracy :  ± 1% FSD
  • Optional: ±0.5% FSD
  • Repeatability : 0.3% Display : 2 Line Alfa Numeric LCD Display Version : Integral /Remote
  • Display Unit : Standard Unit in M3, Litre
  • Power Supply : 230 VAC, 110 VAC 24 VDC
  • Output : Std. 4 - 20 mA
  • Protection Class for Sensor : IP 65
  • Protection Class for Transmitter : IP 65
  • Cable Length for Remote : 10 meters
  • Installation : Inline Flange Type.
