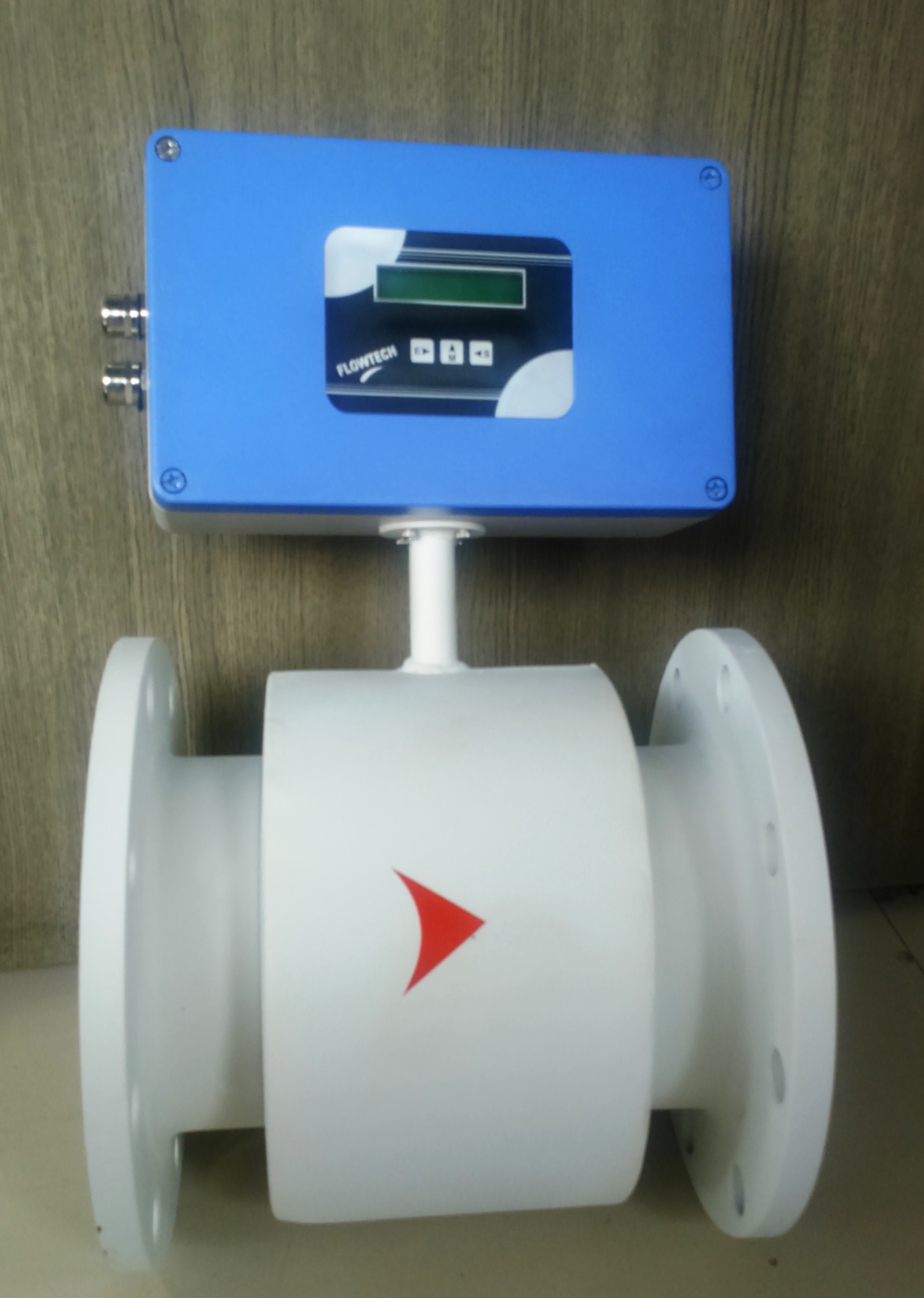

FLOWTECH Make Polypropylene Electromagnetic Flow Meter are intended for measuring the flow of electrically conductive liquids in closed pipelines where the magnetic flux permeates the entire cross-sectional area of the Polypropylene Electromagnetic Flow Meter measure electromotive forces to determine liquids velocity using Faraday's law of electromagnetic induction and compute the flow rate using the equation of conductive liquids having minimum conductivity of 5 micro Siemens/cm and are relatively immune to the effects of temperature, pressure, viscosity density of the flowing liquid.
Working Principle of Polypropylene Electromagnetic Flow Meter :
This is working on the principle of faraday`s law which states that when a conductor moves through a magnetic field of a given strength a voltage is produced in the conductor and proportion to the relative velocity between the conductor and the magnetic field.
Applications of Polypropylene Electromagnetic Flow Meter:
Scientific laboratory
Research centers
Chemical industries
Specifications:
Nominal Dia (mm) : 15 to 400
The material of Construction: MS, SS 304, SS 316 SS 316L
Electrode Material : SS 316, SS 316L, Hastelloy c, Tantalum
Process Pressure : Max. 25 kg/cm2
Process Temperature: Max. 150 degree centigrade
Flow Tube Material: SS 316
End Connection: Flange/Wafer
Flange- Standard : ANSI B 16.5 150 #RF / 300 # RF
Measuring Range : 0.5 m/sec for Minimum 5m/sec for Maximum
Accuracy : plus minus 1% FSD Optional: plus minus 0.5% FSD
Repeatability : 0.3% Display : 2 Line Alfa Numeric LCD Display Version : Integral /Remote
Display Unit: Standard Unit in M3, Litre
Power Supply: 230 VAC, 110 VAC 24 VDC
Output : Std. 4 - 20 mA
Protection Class for Sensor: IP 65
Protection Class for Transmitter: IP 65
Cable Length for Remote: 10 meters
Installation: Inline Flange Type.

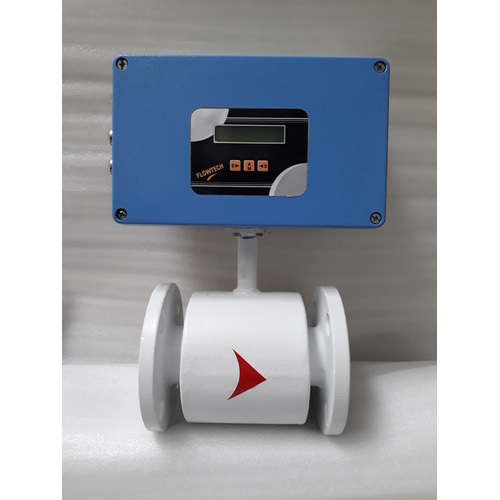

Polypropylene Electromagnetic Flow Meter Specification:
Meter Size: DN 25 to DN 200
Flow-Through Pipe: HDPE, PVC
Electrodes: Hastelloy, SS 316, SS.316L, Tantalum
Flow Meter Body: PVC
Flange Material: PVC
End Connection: FLANGE, TC, SMS UNION,
Input Supply: 110 to 230 V Ac.50 Hz
Power Supply of field Coils: Pulsed Dc
Min Conductivity: 5 cm
FAQ - Polypropylene Electromagnetic Flow Meter:
Is this device safe to use?
Yes, this device is complete safe to use and has a simple design.
How much does the Polypropylene Electromagnetic Flow Meter cost?
It is a low-cost investment with a long lifespan.
Does this device durable?
This device has a great lifespan under regular inspection and minimal maintenance.
