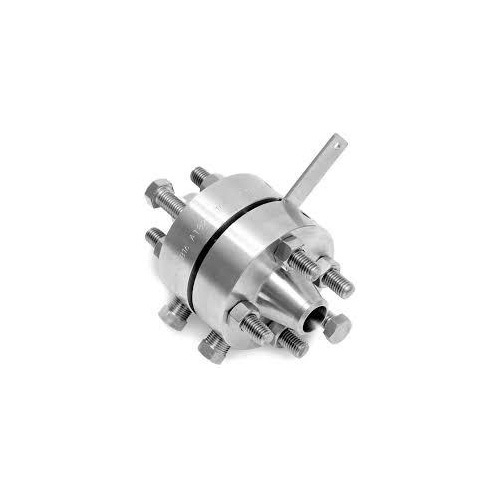

Orifice Plates and Flange Assembles

Name: Orifice Plates and Flange Assembles
Brand: FLOWTECH MEASURING INSTRUMENTS PVT. LTD.

Get a Price/Quote

MOQ : 10 Pieces

Orifice Plates and Flange Assembles Specification

Application
Industrial

Purity
High

Material
Stainless Steel

Surface
Painted

Technics
Hot Rolled

Orifice Plates and Flange Assembles Trade Information

Minimum Order Quantity
10 Pieces

Supply Ability
25 Pieces Per Week

Delivery Time
1 Week

About Orifice Plates and Flange Assembles

Flowtech make Orifice Plates and Flange Assembly are used for measuring flow of various Liquids, Gases & Steam from 1 to 2 line sizes. It gives an acceptable level of uncertainties at lowest cost and long life without regular maintenances. Orifice Plates are most commonly used as primary element for flow measurement in pipelines based upon the principle of measurement of Differential Pressure created when an obstruction is placed in the fluid flow, due to increase in fluid velocity.

Flowtech Make Orifice Plates & Flange Assemblies.
Suitable for creating differential pressure in a pipe line for flow transmitter etc.
Orifice flange assemblies consist of weld neck type flanges with studs, nuts, and gaskets.
Available in SS-316/ P.P. Material.
Design standard confirm to BS 1042
Design Standards
Design - Confirming to ISA RP 3.2, DN 1952, BS 1042, ISO-5167
Orifice Bo re - Confirming to ISO 5167 / BS 1042 / RW Miller / L. K. SPINK / AGE 3
VENT / DRAIN - Vent OR Drain holes are provided as per customers requirement. Not drilled for Orifice Bore smaller than 25.4 mm.

Is flow measuring orifice plates and flange assemblies accurate?

Orifice Plates and Flange Assemblies provide great accuracy in flow measurement when correctly placed and calibrated.

Which fluids can Orifice Plates and Flange Assemblies handle?

They may work with a variety of fluids, including liquids, gases, and steam.

FAQs of Orifice Plates and Flange Assembles:

Q: What are Orifice Plates and Flange Assemblies?

A: Orifice Plates and Flange Assemblies are devices used to regulate fluid flow in pipelines.

Q: What materials are used to make Orifice Plates and Flange Assemblies?

A: Our Orifice Plates and Flange Assemblies are made of high purity stainless steel that is hot rolled to ensure maximum durability and reliability.

Q: What applications are Orifice Plates and Flange Assemblies suitable for?

A: Orifice Plates and Flange Assemblies are designed for industrial applications and are suitable for regulating fluid flow in pipelines.

Q: What is the surface finish of Orifice Plates and Flange Assemblies?

A: The surface of our Orifice Plates and Flange Assemblies is painted to ensure a long-lasting finish that is resistant to corrosion and wear.

Q: Are custom solutions available for Orifice Plates and Flange Assemblies?

A: Yes, our Orifice Plates and Flange Assemblies are available in various sizes and configurations to meet the specific needs of our clients. We have the expertise to provide you with a custom solution that meets your requirements.
