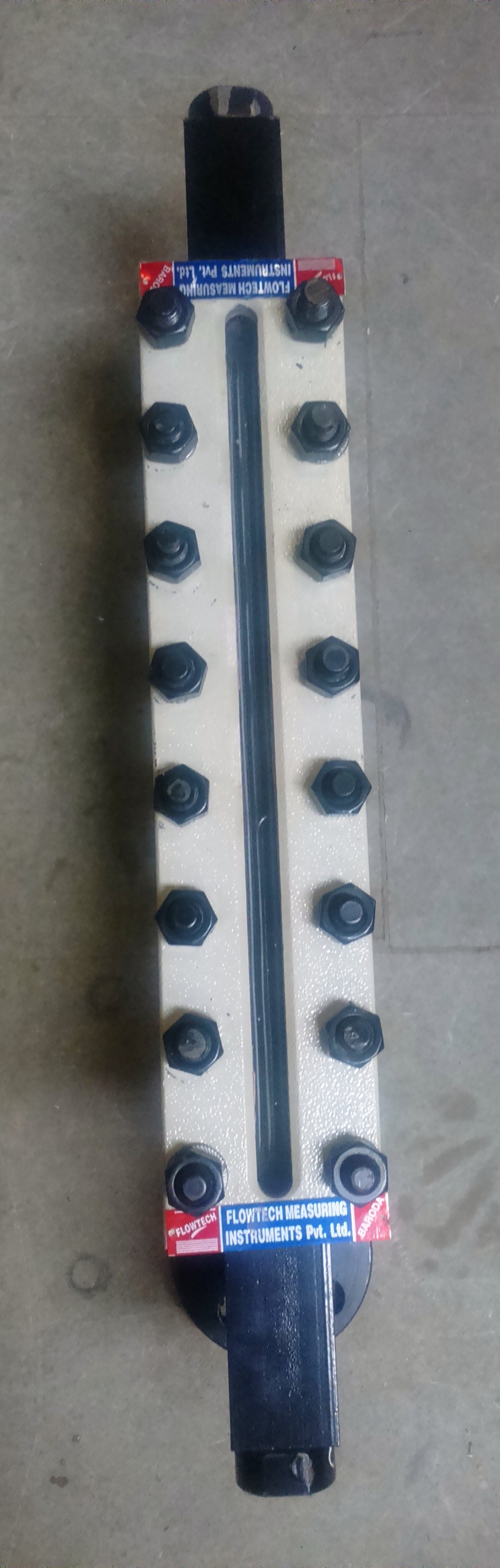

Reflex Level Indicator

Reflex Level Indicator
Send Inquiry
Product Code : RLI-065
Brand Name : FLOWTECH
Product Description

Reflex Level Indicator Suppliers:Flowtech make Transparent Level Gauges employ two transparent glasses fitted with a liquid chamber on either side. The liquid level is indicated as a result of difference in the transparent properties of the two media. For water / steam applications, an illuminator is mounted on the rear side of the gauge with its light rays deflected upward into the water column. This enables the observer to see illuminated surface of the water as the light rays impinged on the surface of separation between water and steam are reflected back to the eye of the observer.


A part from glass tube level gauges, transparent level gauges are always fitted with two plate transparent glasses between which the fluid is contained. The fluid level is indicated as the result of the different transparency of the two media and in some cases (for water steam), by conveying upwards on to the surface of separation (between liquid and gaseous substances) a source of light located at the back of the gauge, the rays of which are totally reflected down to the observer.


Transparent level gauges are suitable for almost all installations. In fact they permit:

  • the use of mica shields or Polytrifluorochloroethylene shields to protect the glass from the corrosive action of the process fluid
  • the observation of interface
  • the observation of the liquid colour
